ANSI B16.5 Class 150 flange dimensions in mm
The American National Standards Institute or the ANSI Class 150 is a system of standards with regards to the dimensions for 150 lb steel flange dimensions like - threaded, socket weld, slip-on, weld neck, lap joint, and blind flanges. The 150 lb raised face flange dimensions for facing, bolts and studs are also included in the ANSI Class.
Weld neck 10 150 lb flange dimensions are covered in ASME B16.5. The 150 lb flange dimensions metric is known to cover Pipe Flanges in addition to 3 150 lb flange dimensions Fittings for size NPS ½ inch to 24 inch for above NPS 26 inch to 60 inch it should be as per ASME B16.47.
ANSI 150 lb flange dimensions also considers characteristics of flanges. For instance, the characteristic considered by the 30 150 lb flange dimensions includes wall thickness, diameter, length. These characteristics as well as the weight of the 150 lb pipe flange dimensions is also taken into consideration for its global manufacturing and engineering.
In concurrence with ANSI, the American Society of Mechanical Engineers (ASME) provides specifications for protruding edges of pipe shafts in cast, forged or plated materials. ASME B16.5-1996 Class 12 inch 150 lb flange dimensions is the standard for engineering and applications that involve the use of flanges. This 24 150 lb flange dimensions standard covers parameters such as materials, pressure and temperature ratings. Besides these parameters, the 30 inch 150 lb flange dimensions also cover tolerances, marking and testing for operating line blanks in nominal pipe sizes (NPS).
Table of Content
- Class 150 flange specification
- ANSI B16.5 Class 150 flange dimensions in mm
- Class 150 ANSI Flange types and dimensions
- Dimensions of RF Class 150 weld neck flange (STD) in mm
- Dimensions of RF Class 150 socket weld flange in mm (STD & XS)

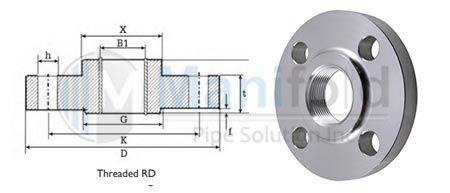

- ASME B16.5 Class 150 raised face threaded flange dimensions in mm
- Raised face Class 150 lap joint flange dimensions in mm
- Dimensions of RF Class 150 blind flange in mm
- Raised face Class 150 slip on flange dimensions in mm
- Material grades of ASME B16.5 Class 150 flange
- Class 150 Weld Neck flange price in India
- ANSI B16.5 class 150 blind flange price list
- Price list of ANSI B16.5 150# Lap joint flange
- ANSI 150 socket weld flange price list
- Latest price of ANSI 150 slip on flange
- Class 150 threaded flange prices
- Class 150 Flange Pressure Rating
- Pressure rating of Stainless Steel Flanges
- Stainless steel Class 150 Flange Price List
150 Lb Blind Flange, Slip On/ Weld Neck are available in stainless and carbon steel, view latest FOB/ CIF price in India
| ANSI flange meaning & full form | Construction of forged steel flanges meets specification of American National Standards Institute (ANSI) |
|---|---|
| Manufacturing size range of Manifold |
|
| Types of ANSI B16.5 150# flanges |
check below ANSI flange dimensions in mm for above types & form |
| Class 150 flange in bar | 285 psi (19.6 bar) |
| ASTM standard of stainless steel ANSI flange |
|
| ASTM standard of carbon steel ANSI flange |
|
| Testing & inspection |
|
| MTC | Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 |
| Shipping locations | Indonesia, Ireland, Spain, Thailand, Iran, Dubai, Egypt, Brazil, Canada, USA, Singapore, Ukraine, Oman, Peru, Korea, Saudi Arabia etc |
View 150 Lb Pipe Flange Dimensions, 150 Lb Slip On Flange, Blind Flange, Weld Neck Flange, Raised Face Flange and Socket Weld Flange weight and pressure rating
| NPS (Nominal Pipe Size) | A | B | F | c | Number Holes | ||||
|---|---|---|---|---|---|---|---|---|---|
| mm | Inch | mm | Inch | mm | Inch | mm | Inch | ||
| 1/2" | 90 | 3.54 | 60.3 | 2.37 | 9.6 | 0.38 | 15.88 | 5/8 | 4 |
| 3/4" | 100 | 3.94 | 69.9 | 2.75 | 11.2 | 0.44 | 15.88 | 5/8 | 4 |
| 1" | 110 | 4.33 | 79.4 | 3.13 | 12.7 | 0.5 | 15.88 | 5/8 | 4 |
| 1 1/4" | 115 | 4.53 | 88.9 | 3.5 | 14.3 | 0.56 | 15.88 | 5/8 | 4 |
| 11/2" | 125 | 4.92 | 98.4 | 3.87 | 15.9 | 0.63 | 15.88 | 5/8 | 4 |
| 2" | 150 | 5.91 | 120.7 | 4.75 | 17.5 | 0.69 | 19.05 | 3/4 | 4 |
| 21/2" | 180 | 7.09 | 139.7 | 5.5 | 20.7 | 0.81 | 19.05 | 3/4 | 4 |
| 3" | 190 | 7.48 | 152.4 | 6 | 22.3 | 0.88 | 19.05 | 3/4 | 4 |
| 3 1/2" | 215 | 8.46 | 177.8 | 7 | 22.3 | 0.88 | 19.05 | 3/4 | 8 |
| 4" | 230 | 9.06 | 190.5 | 7.5 | 22.3 | 0.88 | 19.05 | 3/4 | 8 |
| 5" | 255 | 10.04 | 215.9 | 8.5 | 22.3 | 0.88 | 22.23 | 7/8 | 8 |
| 6" | 280 | 11.02 | 241.3 | 9.5 | 23.9 | 0.94 | 22.23 | 7/8 | 8 |
| 8" | 345 | 13.58 | 298.5 | 11.75 | 27 | 1.06 | 22.23 | 7/8 | 8 |
| 10" | 405 | 15.94 | 362 | 14.25 | 28.6 | 1.13 | 25.4 | 1 | 12 |
| 12" | 485 | 19.09 | 431.8 | 17 | 30.2 | 1.19 | 25.4 | 1 | 12 |
| 14" | 535 | 21.06 | 476.3 | 18.75 | 33.4 | 1.31 | 28.58 | 11/8 | 12 |
| 16" | 595 | 23.43 | 539.8 | 21.25 | 35 | 1.38 | 28.58 | 11/8 | 16 |
| 18" | 635 | 25 | 577.9 | 22.75 | 38.1 | 1.5 | 31.75 | 11/4 | 16 |
| 20" | 700 | 27.56 | 635 | 25 | 41.3 | 1.63 | 31.75 | 11/4 | 20 |
| 24" | 815 | 32.09 | 749.3 | 29.5 | 46.1 | 1.81 | 31.75 | 13/8 | 20 |
See ASME 150 Lb Flange dimensions Online including Rfwn / BLRF/ SORF/ SWRF an threaded flange Dimensions
| Nom. Pipe Size | O | T | R | X | No./Dia. of Holes | Bolt Circle Dia. | L2 | H | B2 | L | B | r | L3 | B3 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2 | 3.50 | 0.44 | 1.38 | 1.19 | 4-0.62 | 2.38 | 1.88 | 0.84 | 0.62 | 0.62 | 0.88 | 0.12 | 0.62 | 0.90 | 0.38 |
| 3/4 | 3.88 | 0.50 | 1.69 | 1.50 | 4-0.62 | 2.75 | 2.06 | 1.05 | 0.82 | 0.62 | 1.09 | 0.12 | 0.62 | 1.11 | 0.44 |
| 1 | 4.25 | 0.56 | 2.00 | 1.94 | 4-0.62 | 3.12 | 2.19 | 1.32 | 1.05 | 0.69 | 1.36 | 0.12 | 0.69 | 1.38 | 0.50 |
| 1-1/4 | 4.62 | 0.62 | 2.50 | 2.31 | 4-0.62 | 3.50 | 2.25 | 1.66 | 1.38 | 0.81 | 1.70 | 0.19 | 0.81 | 1.72 | 0.56 |
| 1-1/2 | 5.00 | 0.68 | 2.88 | 2.56 | 4-0.62 | 3.88 | 2.44 | 1.90 | 1.61 | 0.88 | 1.95 | 0.25 | 0.88 | 1.97 | 0.62 |
| 2 | 6.00 | 0.75 | 3.62 | 3.06 | 4-0.75 | 4.75 | 2.50 | 2.38 | 2.07 | 1.00 | 2.44 | 0.31 | 1.00 | 2.46 | 0.69 |
| 2-1/2 | 7.00 | 0.88 | 4.12 | 3.56 | 4-0.75 | 5.50 | 2.75 | 2.88 | 2.47 | 1.12 | 2.94 | 0.31 | 1.12 | 2.97 | 0.75 |
| 3 | 7.50 | 0.94 | 5.00 | 4.25 | 4-0.75 | 6.00 | 2.75 | 3.50 | 3.07 | 1.19 | 3.57 | 0.38 | 1.19 | 3.60 | 0.81 |
| 3-1/2 | 8.50 | 0.94 | 5.50 | 4.81 | 8-0.75 | 7.00 | 2.81 | 4.00 | 3.55 | 1.25 | 4.07 | 0.38 | 1.25 | 4.10 | 0.88 |
| 4 | 9.00 | 0.94 | 6.19 | 5.31 | 8-0.75 | 7.50 | 3.00 | 4.50 | 4.03 | 1.31 | 4.57 | 0.44 | 1.31 | 4.60 | 0.94 |
| 5 | 10.00 | 0.94 | 7.31 | 6.44 | 8-0.88 | 8.50 | 3.50 | 5.56 | 5.05 | 1.44 | 5.66 | 0.44 | 1.44 | 5.69 | 0.94 |
| 6 | 11.00 | 1.00 | 8.50 | 7.56 | 8-0.88 | 9.50 | 3.50 | 6.63 | 6.07 | 1.56 | 6.72 | 0.50 | 1.56 | 6.75 | 1.06 |
| 8 | 13.50 | 1.12 | 10.62 | 9.69 | 8-0.88 | 11.75 | 4.00 | 8.63 | 7.98 | 1.75 | 8.72 | 0.50 | 1.75 | 8.75 | 1.25 |
| 10 | 16.00 | 1.19 | 12.75 | 12.00 | 12-1.00 | 14.25 | 4.00 | 10.75 | 10.02 | 1.94 | 10.88 | 0.50 | 1.94 | 10.92 | 1.31 |
| 12 | 19.00 | 1.25 | 15.00 | 14.38 | 12-1.00 | 17.00 | 4.50 | 12.75 | 12.00 | 2.19 | 12.88 | 0.50 | 2.19 | 12.92 | 1.56 |
| 14 | 21.00 | 1.38 | 16.25 | 15.75 | 12-1.12 | 18.75 | 5.00 | 14.00 | 13.25 | 2.25 | 14.14 | 0.50 | 3.12 | 14.18 | 1.63 |
| 16 | 23.50 | 1.44 | 18.50 | 18.00 | 16-1.12 | 21.25 | 5.00 | 16.00 | 15.25 | 2.50 | 16.16 | 0.50 | 3.44 | 16.19 | 1.75 |
| 18 | 25.00 | 1.56 | 21.00 | 19.88 | 16-1.25 | 22.75 | 5.50 | 18.00 | 17.25 | 2.69 | 18.18 | 0.50 | 3.81 | 18.20 | 1.94 |
| 20 | 27.50 | 1.69 | 23.00 | 22.00 | 20-1.25 | 25.00 | 5.69 | 20.00 | 19.25 | 2.88 | 20.20 | 0.50 | 4.06 | 20.25 | 2.13 |
| 22 | 29.50 | 1.81 | 25.25 | 24.25 | 20-1.38 | 27.25 | 5.88 | 22.00 | 21.25 | 3.13 | 22.22 | 0.50 | 4.25 | 22.25 | 2.38 |
| 24 | 32.00 | 1.88 | 27.25 | 26.12 | 20-1.38 | 29.50 | 6.00 | 24.00 | 23.25 | 3.25 | 24.25 | 0.50 | 4.38 | 24.25 | 2.50 |
We maintain Stock of 150 Lb Steel Flange, find 8 Inch, 18 inch and 30 Inch Class 150 socket weld and threaded flanges dimensions
View 12 Inch, 16 Inch, 24 Inch 150 Lb Flange Dimensions, pressure rating and price in India
| Stainless steel |
|
|---|---|
| Carbon steel |
|
| Alloy steel |
|
| High performance alloys |
|
| Product | US $ | Saudi Arabia (SAR) | South africa (ZAR) |
|---|---|---|---|
| ASTM A105N/A350 LF2 FLANGE WELDNECK 12" SCH 160 CLS 150 ENF CS | $2,127.62 | 7976.42 SAR | 40175.74 ZAR |
| ASTM A350 LF2 REDUCING WELDNECK FLANGE 28" CLS 150 RF | $1,522.93 | 5711.11 SAR | 28757.41 ZAR |
| ASTM A105N WELDNECK FLANGE 36" SCH STD CLS 150 RF | $1,211.02 | 4541.42 SAR | 22865.45 ZAR |
| ASTM A105 WELDNECK FLANGE 24" SCH 80 RF CLS 150 | $574.73 | 2155.28 SAR | 10851.56 ZAR |
| ASTM A105N WELDNECK FLANGE 8" SCH 80/XS CLS 150 | $470.48 | 1764.34 SAR | 8883.20 ZAR |
| Product | US $ | Saudi Arabia (SAR) | South africa (ZAR) |
|---|---|---|---|
| ASTM A105 BLIND FLANGE 24" RF CLS 150 | $556.94 | 2088.57 SAR | 10516.67 ZAR |
| ASTM A350 LF2 BLIND FLANGE 18" CLS 150 RF | $510.88 | 1915.84 SAR | 9646.92 ZAR |
| ASTM A105 BLIND FLANGE 20" RF CLASS 150 | $364.92 | 1368.48 SAR | 6890.77 ZAR |
| ASTM A105 BLRF FLANGE 18" RAISED FACE CLASS 150 | $279.74 | 1049.05 SAR | 5282.32 ZAR |
| A105 FLANGE BLIND 16" RAISED FACE CLS 150 | $229.30 | 859.89 SAR | 4329.86 ZAR |
| Product | US $ | Saudi Arabia (SAR) | South africa (ZAR) |
|---|---|---|---|
| ASTM A105N LAP JOINT FLANGE 16" CLS 150 | $138.48 | 517.52 SAR | 2614.91 ZAR |
| ASTM A182 GRADE F51 SS LAP JOINT FLANGE 1.1/2" CLS 300 | $66.03 | 247.62 SAR | 1246.84 ZAR |
| ASTM A105N LAP JOINT FLANGE 12" CLS 150 | $73.97 | 277.40 SAR | 1396.77 ZAR |
| ASTM A105N FLANGE LJ 8" CLASS 150 | $29.41 | 110.29 SAR | 555.35 ZAR |
| A105N FLANGE LAP JOINT 4" CLS 150 | $13.85 | 51.94 SAR | 261.53 ZAR |
| Product | US $ | Saudi Arabia (SAR) | South africa (ZAR) |
|---|---|---|---|
| ASTM A105 FLANGE SOCKET WELD 1" SCH 80/XS RF CLASS 150 | $4.07 | 15.26 SAR | 76.85 ZAR |
| ASTM A350 LF2 FLANGE SWRF 2" SCH 80/XS CLASS 150 RF | $11.92 | 44.70 SAR | 225.08 ZAR |
| ASTM A105 FLANGE SOCKET WELD 3/4" SCH 160 RF CLASS 150 | $5.20 | 19.50 SAR | 98.19 ZAR |
| ASTM A105N SOCKET WELD FLANGE 3/4" SCH 160 CLASS 150 RF | $5.16 | 19.35 SAR | 97.44 ZAR |
| ASTM A182 F316 SOCKET WELD FLANGE 1/2" SCH 10S CLASS 150 RF | $3.28 | 12.30 SAR | 61.94 ZAR |
| Product | US $ | Saudi Arabia (SAR) | South africa (ZAR) |
|---|---|---|---|
| ASTM A182 316L FLANGE SLIP ON 16" CLASS 150 RAISED FACE | $318.72 | 1195.25 SAR | 6018.37 ZAR |
| ASTM A182 F316 FLANGE SLIP ON 14" CLASS 150 RF | $240.24 | 900.94 SAR | 4536.44 ZAR |
| ASTM A182 F316 SLIP ON FLANGE 12" CLS 150 RAISED FACE | $188.36 | 706.38 SAR | 3556.79 ZAR |
| ASTM A105N FLANGE SLIP ON 18" CLS 150 RF | $113.84 | 426.92 SAR | 2149.64 ZAR |
| ASTM A105N FLANGE SORF 10" CLS 150 | $60.00 | 225.01 SAR | 1132.98 ZAR |
| Product | US $ | Saudi Arabia (SAR) | South africa (ZAR) |
|---|---|---|---|
| ASTM A182 F316 FLANGE THREADED 4" CLASS 150 | $86.38 | 323.94 SAR | 1631.11 ZAR |
| ASTM A105N FLANGE THREADED 4" CLS 150 FLAT FACE | $32.85 | 123.19 SAR | 620.30 ZAR |
| ASTM A105N FLANGE THREADED 3" CLASS 150 FF | $22.74 | 85.28 SAR | 429.40 ZAR |
| A182 F304 FLANGE THREADED 1.1/2" CLS 150 FLAT FACE | $17.01 | 63.79 SAR | 321.20 ZAR |
| ASTM A182 F304L FLANGE THREADED 1" CLS 150 RF | $10.37 | 38.89 SAR | 195.82 ZAR |
Rating Of Carbon Steel Flanges
The table shows the maximum pressure in PSI ASTM A105 / ASTM A350 LF2 / ASTM A350 LF3 / ASTM A350 LF6
| Temperature (in F°) | 150# | 300# | 400# | 600# | 900# | 1500# | 2500# |
|---|---|---|---|---|---|---|---|
| < 100 | 285 | 740 | 985 | 1480 | 2220 | 3705 | 6170 |
| 200 | 260 | 680 | 905 | 1360 | 2035 | 3395 | 5655 |
| 300 | 230 | 655 | 870 | 1310 | 1965 | 3270 | 5450 |
| 400 | 200 | 635 | 845 | 1265 | 1900 | 3170 | 5280 |
| 500 | 170 | 605 | 805 | 1205 | 1810 | 3015 | 5025 |
| 600 | 140 | 570 | 755 | 1135 | 1705 | 2840 | 4730 |
| 650 | 125 | 550 | 730 | 1100 | 1650 | 2745 | 4575 |
| 700 | 110 | 530 | 710 | 1060 | 1590 | 2655 | 4425 |
| 750 | 95 | 505 | 675 | 1015 | 1520 | 2535 | 4230 |
| 800 | 80 | 410 | 550 | 825 | 1235 | 2055 | 3430 |
| 850 | 65 | 320 | 425 | 640 | 955 | 1595 | 2655 |
| 900 | 50 | 230 | 305 | 460 | 690 | 1150 | 1915 |
| 950 | 35 | 135 | 185 | 275 | 410 | 685 | 1145 |
| 1000 | 20 | 85 | 115 | 170 | 255 | 430 | 715 |
| Hydrostatic Test Pressure (psig) | 450 | 1125 | 1500 | 2225 | 3350 | 5575 | 9275 |
Rating In Bars
| TEMP C° | 150# | 300# | 400# | 600# | 900# | 1500# | 2500# |
|---|---|---|---|---|---|---|---|
| -29 / 38 | 19.6 | 51.1 | 68.1 | 102.1 | 153.2 | 255.3 | 425.5 |
| 50 | 19.2 | 50.1 | 66.8 | 100.2 | 150.4 | 250.6 | 417.7 |
| 100 | 17.7 | 46.6 | 62.1 | 93.2 | 139.8 | 233 | 388.3 |
| 150 | 15.8 | 45.1 | 60.1 | 90.2 | 135.2 | 225.4 | 375.6 |
| 200 | 13.8 | 43.8 | 58.4 | 87.6 | 131.4 | 219 | 365 |
| 250 | 12.1 | 41.9 | 55.9 | 83.9 | 125.8 | 209.7 | 349.5 |
| 300 | 10.2 | 39.8 | 53.1 | 79.6 | 119.5 | 199.1 | 331.8 |
| 325 | 9.3 | 38.7 | 51.6 | 77.4 | 116.1 | 193.6 | 322.6 |
| 350 | 8.4 | 37.6 | 50.1 | 75.1 | 112.7 | 187.8 | 313 |
| 375 | 7.4 | 36.4 | 48.5 | 72.7 | 109.1 | 181.8 | 303.1 |
| 400 | 6.5 | 34.7 | 46.3 | 69.4 | 104.2 | 173.6 | 289.3 |
| 425 | 5.5 | 28.8 | 38.4 | 57.5 | 86.3 | 143.8 | 239.7 |
| 450 | 4.6 | 23 | 30.7 | 46 | 69 | 115 | 191.7 |
| 475 | 3.7 | 17.4 | 23.2 | 34.9 | 52.3 | 87.2 | 145.3 |
| 500 | 2.8 | 11.8 | 15.7 | 23.5 | 35.3 | 58.8 | 97.9 |
| 538 | 1.4 | 5.9 | 7.9 | 11.8 | 17.7 | 29.5 | 49.2 |
Flanges Pressure Rating in Bars ANSI flanges (ASTM A182 F304L / ASTM A182 F316L)
| TEMP C° | 150# | 300# | 400# | 600# | 900# | 1500# | 2500# |
| -29 TO 38 | 15.9 | 41.4 | 55.2 | 82.7 | 124.1 | 206.8 | 344.7 |
| 50 | 15.3 | 40 | 53.4 | 80 | 120.1 | 200.1 | 333.5 |
| 100 | 13.3 | 34.8 | 46.4 | 69.6 | 104.4 | 173.9 | 289.9 |
| 150 | 12 | 31.4 | 41.9 | 62.8 | 94.2 | 157 | 261.6 |
| 200 | 11.2 | 29.2 | 38.9 | 58.3 | 87.5 | 145.8 | 243 |
| 250 | 10.5 | 27.5 | 36.6 | 54.9 | 82.4 | 137.3 | 228.9 |
| 300 | 10 | 26.1 | 34.8 | 52.1 | 78.2 | 130.3 | 217.2 |
| 325 | 9.3 | 25.5 | 34 | 51 | 76.4 | 127.4 | 212.3 |
| 350 | 8.4 | 25.1 | 33.4 | 50.1 | 75.2 | 125.4 | 208.9 |
| 375 | 7.4 | 24.8 | 33 | 49.5 | 74.3 | 123.8 | 206.3 |
| 400 | 6.5 | 24.3 | 32.4 | 48.6 | 72.9 | 121.5 | 202.5 |
| 425 | 5.5 | 23.9 | 31.8 | 47.7 | 71.6 | 119.3 | 198.8 |
| 450 | 4.6 | 23.4 | 31.2 | 46.8 | 70.2 | 117.1 | 195.1 |
| Description | Size | Aprox. Wt/Unit | FOB US $ | CIF US $ | FOB STGP | CIF STGP | FOB EURO$ | CIF EURO$ |
|---|---|---|---|---|---|---|---|---|
| A182 F304 B16.5 150# | 15mm | 0.49 | 5.297 | 5.758 | 3.567 | 3.878 | 6.356 | 6.909 |
| A182 F304 B16.5 150# | 20mm | 0.61 | 6.586 | 7.159 | 4.436 | 4.821 | 7.904 | 8.591 |
| A182 F304 B16.5 150# | 25mm | 0.90 | 10.594 | 11.515 | 7.135 | 7.755 | 12.713 | 13.818 |
| A182 F304 B16.5 150# | 32mm | 1.13 | 11.169 | 12.140 | 7.522 | 8.176 | 13.403 | 14.568 |
| A182 F304 B16.5 150# | 40mm | 1.48 | 12.946 | 14.072 | 8.719 | 9.477 | 15.535 | 16.886 |
| A182 F304 B16.5 150# | 50mm | 2.37 | 17.651 | 19.186 | 11.887 | 12.921 | 21.181 | 23.023 |
| A182 F304 B16.5 150# | 65mm | 3.60 | 31.764 | 34.527 | 21.392 | 23.253 | 38.117 | 41.432 |
| A182 F304 B16.5 150# | 80MM | 4.10 | 42.341 | 46.023 | 28.515 | 30.995 | 50.809 | 55.227 |
| A182 F304 B16.5 150# | 100mm | 6.04 | 47.045 | 51.136 | 31.684 | 34.439 | 56.455 | 61.364 |
| A182 F304 B16.5 150# | 125mm | 6.53 | 52.935 | 57.538 | 35.650 | 38.750 | 63.522 | 69.045 |
| A182 F304 B16.5 150# | 150mm | 7.78 | 75.273 | 81.818 | 50.694 | 55.102 | 90.327 | 98.182 |
| A182 F304 B16.5 150# | 200mm | 12.98 | 136.432 | 148.295 | 91.883 | 99.872 | 163.718 | 177.955 |
| A182 F304 B16.5 150# | 250mm | 17.96 | 176.420 | 191.761 | 118.814 | 129.145 | 211.705 | 230.114 |
| A182 F316 B16.5 150# | 15mm | 0.49 | 5.889 | 6.402 | 3.966 | 4.311 | 7.067 | 7.682 |
| A182 F316 B16.5 150# | 20mm | 0.61 | 7.057 | 7.670 | 4.753 | 5.166 | 8.468 | 9.205 |
| A182 F316 B16.5 150# | 25mm | 0.90 | 12.702 | 13.807 | 8.555 | 9.298 | 15.243 | 16.568 |
| A182 F316 B16.5 150# | 32mm | 1.13 | 14.114 | 15.341 | 9.505 | 10.332 | 16.936 | 18.409 |
| A182 F316 B16.5 150# | 40mm | 1.48 | 15.298 | 16.629 | 10.303 | 11.199 | 18.358 | 19.955 |
| A182 F316 B16.5 150# | 50mm | 2.37 | 27.060 | 29.413 | 18.224 | 19.809 | 32.472 | 35.295 |
| A182 F316 B16.5 150# | 65mm | 3.60 | 35.877 | 38.996 | 24.162 | 26.263 | 43.052 | 46.795 |
| A182 F316 B16.5 150# | 80MM | 4.10 | 52.935 | 57.538 | 35.650 | 38.750 | 63.522 | 69.045 |
| A182 F316 B16.5 150# | 100mm | 6.04 | 61.159 | 66.477 | 41.189 | 44.770 | 73.391 | 79.773 |
| A182 F316 B16.5 150# | 125mm | 6.53 | 77.625 | 84.375 | 52.278 | 56.824 | 93.150 | 101.250 |
| A182 F316 B16.5 150# | 150mm | 7.78 | 94.091 | 102.273 | 63.367 | 68.878 | 112.909 | 122.727 |
| A182 F316 B16.5 150# | 200mm | 12.98 | 211.705 | 230.114 | 142.577 | 154.974 | 254.045 | 276.136 |
| A182 F316 B16.5 150# | 250mm | 17.96 | 235.227 | 255.682 | 158.418 | 172.194 | 282.273 | 306.818 |
Features of the 150 lb forged steel flange dimensions are as follows -
Polypropylene Class 16 150 lb flange dimensions are offered in both threaded as well as blind types in the markets. These one-piece 150 lb socket weld flange dimensions have a maximum operating pressure of 150 pounds per square inch or PSI. The glass reinforcement in the 8 inch 150 lb flange dimensions contributes to their strength and durability.
During inspection of the 18 150 lb flange dimensions, buyers must check for the following -
- The Outer & Inner Diameter of body must be in tandem with the 150 lb rfwn flange dimensions
- Bolt Circle & Bolt hole Diameter must match the asme 150 lb flange dimensions
- the thickness of weld end in the 150 lb slip on flange dimensions.
- Length of the Hub must match the 150 lb weld neck flange dimensions
- The 150 lb blind flange dimensions are required to be Straight. Further, the bolt hole must align with the 16 150 lb flange dimensions.
To know more about the flanges contact us for the 150 lb flange dimensions pdf & ready stock
